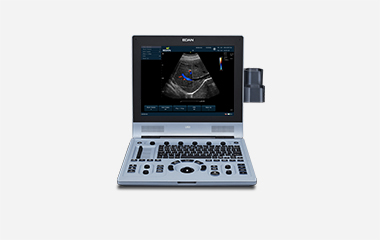

Color Portable Ultrasound Machine - EDAN U60

Color Portable Ultrasound Machine - EDAN U60

U60 Diagnostic Ultrasound System from EDAN

The compact Edan U60 ultrasound device delivers outstanding and detailed images with a contrast resolution. The Quick Imaging tools feature is particularly helpful. This makes it easy to quickly optimise imaging, no matter what mode you are using the device on. It also has an excellent colour and Doppler sensitivity which detects small vessels with low flow rates. The integrated software is well-structured and very easy to use. Everything is neatly organized: patient data, application measurements, calculations with various output options, comment functions… The U60 can therefore be used by gynaecologists, general practitioners, urologists and doctors from many other fields. The transducers can be used for abdominal examinations as well as for smaller structures.

Product details

  • Mobile ultrasound case device
  • Continuous wave (CW) mode option
  • Backlit keyboard (American, QWERTY) with ergonomically arranged function areas
  • With integrated software and carrying case
  • Integrated rechargeable lithium battery enables mobile use (80 min operating time)
  • Dimensions: L 35 x W 37 x H 22 cm
  • Weight: 8500 g
  • Available in different versions
Description

Technical details

  • Imaging modes: HPRF, colour, DPDI and triplex
  • 15.1" LCD monitor with 256 grey scales and multi-pseudo colour function
  • QWERTY keyboard layout
  • Loop display: 1227 images
  • Memory: 500 GB
  • 2 USB ports and 2 transducer slots
  • With Tissue Harmonic Imaging (TSI) and spectral Doppler imaging
  • 8-segment TGC for sensitive image settings
  • Max. Scan angle: 155 °
  • Doppler's connection: 2 standard
  • Doppler's frequency: 1 - 15 MHz
  • Max. Scan depth: 324 mm

Convex transducer

  • Convex transducer C352UB
  • Applications: Abdomen, obstetrics, gynaecology, urology
  • Frequencies: 2.5 MHz; 3.5 MHz; 4.5 MHz; H5 MHz; H4 MHz; 128 elements [*CE+FDA+CA*]

Linear transducer

  • Linear transducer L742UB
  • Applications: Visualisation of small structures
  • Frequencies: 6.5 MHz; 7.5 MHz; 8.5 MHz; H9 MHz; H9.4 MHz; 128 elements

Package contents

  • 1 Edan U60 Diagnostic Ultrasound System in the selected version
  • 1 transducer (convex transducer or linear transducer)
  • 1 ultrasound gel
  • 1 power supply unit
  • 1 carrying case
