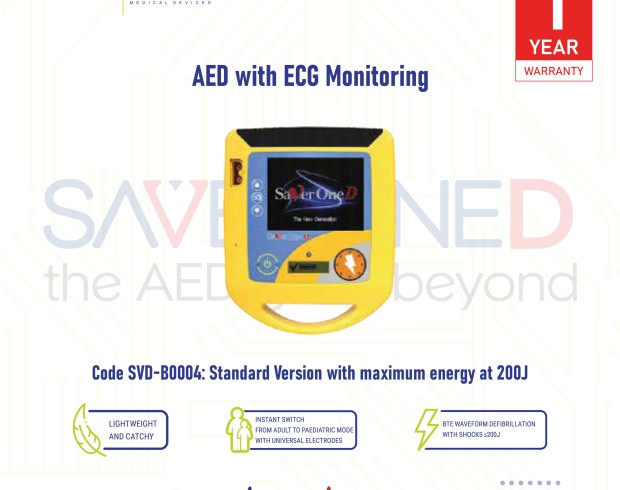

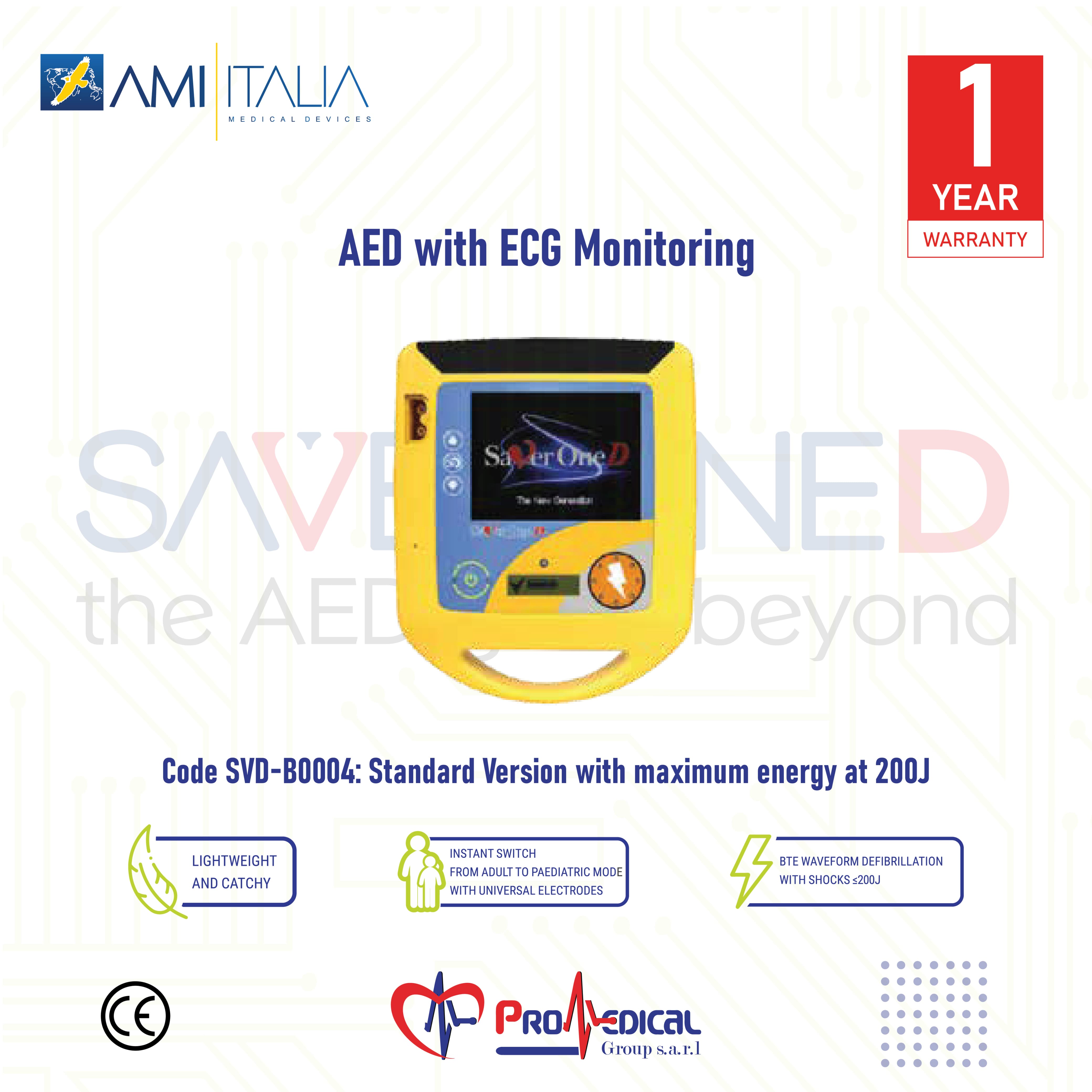

Rugged, small and lightweight AED with ECG Monitoring capability.
Totally reliable for trained users featuring advanced capacities to help improve lifesaving outcomes.
THE RIGHT CHOICE FOR HARSH, OUTDOOR OR MOBILE USE

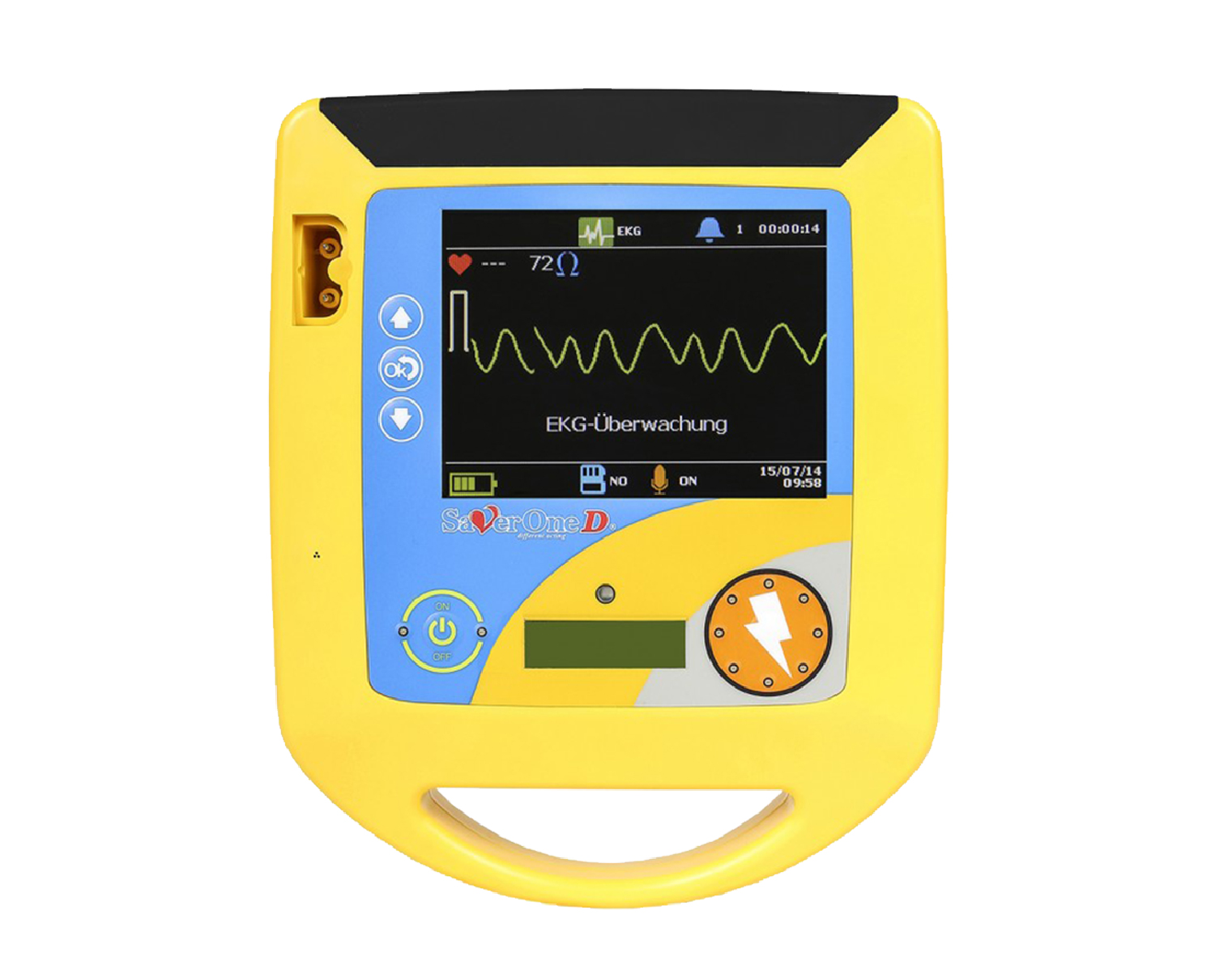

While in AED mode, it allows the user to view the ECG and everything needed to know about the patient and ongoing rescue treatment on a very large full-colour interactive display (12×8 cm).
It can be switched in a ECG Monitoring mode, to allow for watch over the rhythm and heart rate while using defibrillation pads or standard ECG electrodes connected to a separate cable.
While in AED mode, it allows the user to view the ECG and everything needed to know about the patient and ongoing rescue treatment on a very large full-colour interactive display (12×8 cm).
It can be switched in a ECG Monitoring mode, to allow for watch over the rhythm and heart rate while using defibrillation pads or standard ECG electrodes connected to a separate cable
| DEFIBRILLATOR | |
| Operation: | AED Semi-Automatic; ECG Monitoring capability |
| Energies: | Standard max 200J or Power max 360J |
| Waveform: | Adaptive BTE (biphasic truncated exponential) conforming to patient chest’s impedance |
| Protocols: | Various adult shock protocols available on request |
| Factory default: | Adult Standard escalating 150, 200, 200J Adult Power escalating 200, 250, 360J Pediatric (Standard or Power) 50J fixed |
| Charging time: | ≤9 seconds with a new and fully charged battery depleted battery will result in a longer charging time |
| Analysis time: | IEC/EN 60601-2-4 from 4 to 15 seconds |
| Impedance: | 20-200 ohms |
| Sensitivity: | IEC/EN 60601-2-4 (AHADB, MITDB source), 97% |
| Specificity: | IEC/EN 60601-2-4 (AHADB, MITDB source), 99% |
| Controls: | 2 buttons: ON/OFF, shock button, and 3 buttons to surf the menu. |
| Indicators: | Status LED indicator informing on device condition Battery gauge with remaining capacity rate Audible alerts and text display with service alarms |
| Upgradeable: | through a USB cable or memory card |
| ECG MONITORING | |
| Operations: | Through defibrillation pads or standard ECG electrodes attached to a separate 2-Lead patient monitoring reusable cable SAV-C0017 |
| ECG size: | Manual setting through the menu |
| Heart Rate: | 30-200 bpm |
| Sweep Speed: | 25 mm/sec |
| Standards: | IEC/EN 60601-2-27 less then the points 202.6.2.101; 201.12.1.101.12,13; 208.6.6.2.101 not performed for the intended use of the device, as it is not intended for environments such as operating theatres or intensive care units |
| Display: | 5,7” TFT colour, 640 x 480 pixel |
