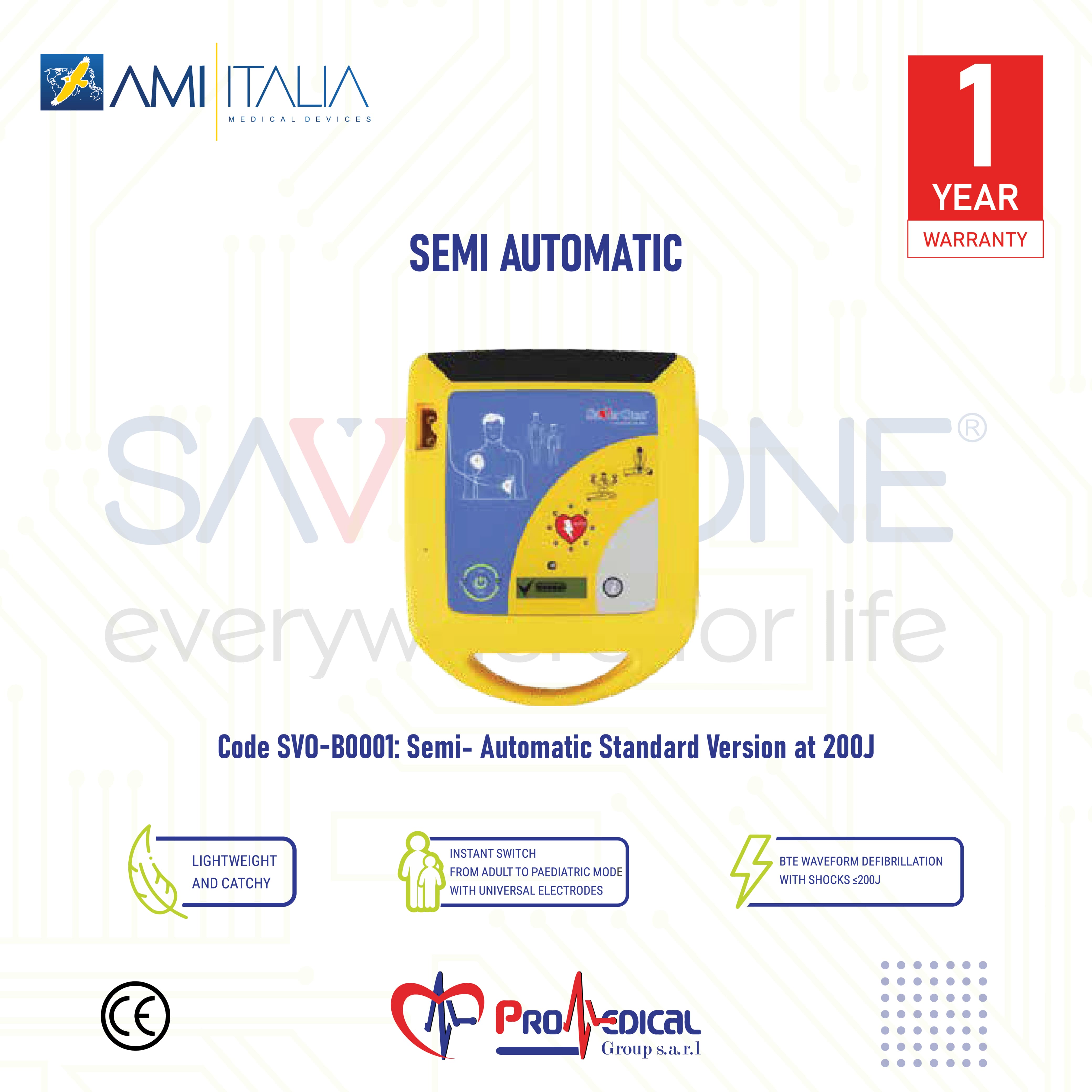

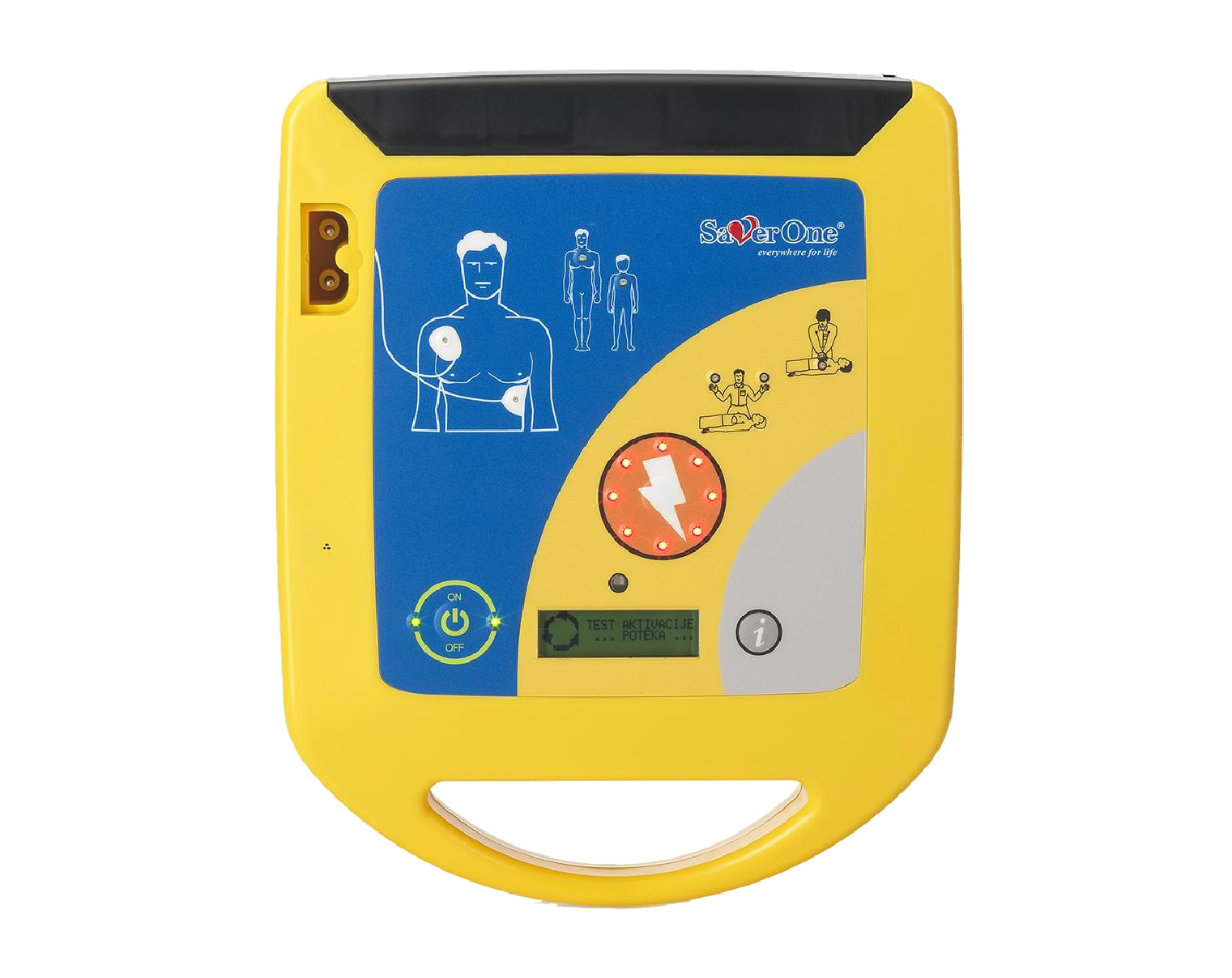

SAVER ONE PADs are designed for a public access use and licensed to administer fast and safe rescues.
Highly-effective and user-friendly for any lay rescuer, even without minimal training.
Designed to help save lives in any public circumstances and optimized for a rapid delivery of defibrillation therapy, anytime and anywhere and before EMS team arriving.
Practical and very simple to use. Highly intuitive with pictograms and flashing icons and clear voice messages to lead and support ordinary rescuers through each step for an effective lifesaving protocol.
Designed to help save lives in any public circumstances and optimized for a rapid delivery of defibrillation therapy, anytime and anywhere and before EMS team arriving.
| DEFIBRILLATOR | |
| Operation: | Semi-Automatic Version |
| Energies: | Standard max 200J or Power max 360J |
| Waveform: | Adaptive BTE (biphasic truncated exponential) conforming to patient chest’s impedance |
| Protocols: | Various adult shock protocols available on request |
| Factory default: | Adult Standard escalating 150, 200, 200J Adult Power escalating 200, 250, 360J Pediatric (Standard or Power) 50J fixed |
| Charging time: | ≤9 seconds with a new and fully charged battery depleted battery will result in a longer charging time |
| Analysis time: | IEC/EN 60601-2-4 from 4 to 15 seconds |
| Impedance: | 20-200 ohms |
| Sensitivity: | IEC/EN 60601-2-4 (AHADB, MITDB source), 97% |
| Specificity: | IEC/EN 60601-2-4 (AHADB, MITDB source), 99% |
| Controls: | 3 buttons : ON/OFF, Shock , “i“ info button |
| Flashing Icons: | “connects pads to patient“ “adult/child“ informing on pads type use “touch patient“ informing it’s safe to touch |
| Indicators: | Status LED indicator informing on device condition Battery gauge with remaining capacity rate Audible alerts and text display with service alarms |
| Upgradeable: | through a USB cable or memory card |
| BATTERY OPTIONS | |
| Type : | Li-SOCl2 Disposable, code SAV-C0903 |
| Autonomy: | 300 complete rescue cycles (shocks at 200J and CPR) or 200 complete rescue cycles (shocks at 200J and CPR) or 35 hours ECG analysis for a new and fully charged battery (*) |
| Shelf-Life: | when stored in original packaging 5 years (*) |
| Battery-Life: | 4 years once installed to AED, assuming one battery insertion test and daily self-test but without switching AED on (*) |
| Type: | Li-ion Accumulator, code SAV-C0011 |
| Recharging time: | 2,5 hours with the charger station code SAV-C0014 (*) (recommended to charge every 4 months at least) |
| Autonomy: | 250 shocks at 200J or 160 shocks at 360J or 21 hours in ECG analysis for a new fully charged accumulator (*) |
| Battery-Life: | 2 years or 300 charging cycles (*) |
